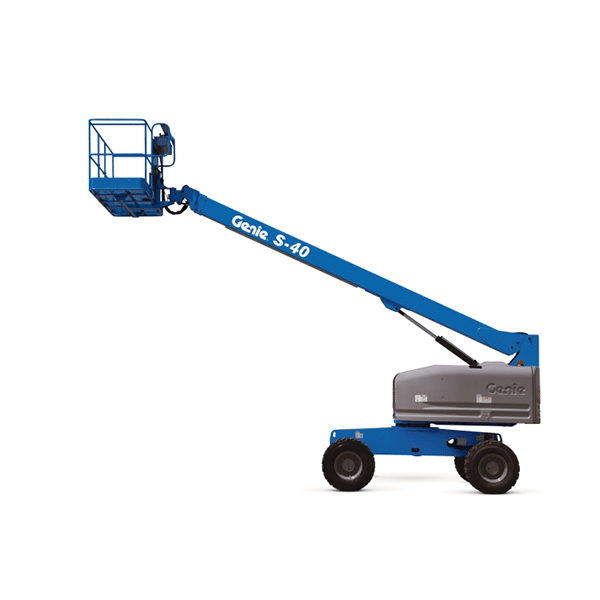

Genie S 40 Spec Sheet
Quick-reference specifications for the Genie S 40. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform height maximum: 40 ft
Its three-person capacity platform holds: 750 lbs (340 kg) at the maximum horizontal outreach of
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Its three-person capacity platform holds | 750 lbs (340 kg) at the maximum horizontal outreach of |
|---|---|
| the articulating jib boom option gives you an extra | 5 ft (1.52 m) of |
| height. U.S. adds | 6 ft to platform height. |
| Platform height maximum | 40 ft |
| Lift capacity | 500 lbs |
| Turntable tailswing 2 ft | 10 in |
| Gradeability – | 4WD – stowed** 40% |
| Turning radius – inside 6 ft | 8 in |
| Turning radius – outside 15 ft | 8 in |
Dimensions
| Platform length – 6 ft model 2 ft | 6 in |
|---|---|
| Platform width – 6 ft model | 6 ft |
| Height – stowed 8 ft | 2 in |
| Length – stowed 24 ft | 3 in |
| Width (with standard tires) 7 ft | 6 in |
| Wheelbase 7 ft | 3 in |
| Ground clearance – center | 1 ft .5 in |
Weights & Electrical
| tight SPaceS The | 360˚ continuous |
|---|---|
| horizontal or vertical reach and | 135˚ of working range. |
| Horizontal reach maximum 31 ft | 8 in |
| Below ground reach 3 ft | 2 in |
| Controls | 12 V DC proportional |
| Power source Ford DSG 423 4 cylinder gas/LPG | 75 hp (56 kW) |
| Auxiliary power unit | 12 V DC |
Powertrain & Systems
| Drive speed – stowed | 4.8 mph |
|---|---|
| Drive speed – raised or extended | 0.68 mph |
| Tires – RT lug | 12-16.5 NHS |
Hydraulics & Capacities
| Hydraulic tank capacity | 45 gal |
|---|---|
| Fuel tank capacity | 20 gal |
